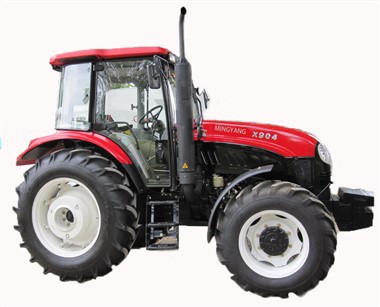

MY-EX904 Wheeled Tractor

1.The diesel engine, which is manufactured using advanced British technology, delivers large torque, high fuel efficiency and low emission.
2.The transmission system is made on the basis of Italian technology.
3.The full hydraulic steering system is utilized for easy operation.
4.High safety is ensured due to the use of the wet disc brake.
5.Comprehensive lifting system will help user to control agricultural implements easily.

Send Inquiry

Description

Product Parameter (Specification):

Configuration		MY-EX904
Diesel engine		LR4M5-23(made in YTO)
Air brake		Include
Clutch		12 inch LUK clutch
Shift gear system		12+4 shift sliding sleeve(Optional:12+12 shuttle)
PTO output rotating speed		540/1000 rpm
Hydraulic output		1 set（Optional:2 set）
Tractor Color		Red( Changed according to your requirement)
Tyre size		12.4-24 /18.4-30
Balance weight		Front 6/Rear 4
Lift system		High Pressure
Suspension system		Ⅱtype
Traction system		Traction
Toolbox		Include
Air filter		Desert type
ROPS+Sun Shield		Include（Optional:Cab +Air Conditional）
Drive type		4×4
Overall dimension	mm	4350×2300×2765
wheelbase	mm	2314
Front wheel track	mm	1630-1960
Rear wheel track	mm	1540-2120
Min. ground clearance	mm	430
Min. turning radius	m	5.6
Min. operating weight	kg	3675
Gears of transmission f/r		12/4(12+12)
Forward speed	km/h	1.64-26.97
Reverse speed	km/h	4.23-12.69
Engine model		LR4M5-23
Engine type		4-cylinder,vertical,water-cooling,
Engine rated power	kW	66.2/90
Engine rated RPM	r/min	2300
Rated fuel consumption	g/k W .h	≤230
Front tyre		12.4-24
Rear tyre		18.4-30
Max. lift capacity	kN	≥2300
PTO shaft type		Rear positioned, independent
PTO shaft rotation speed	r/min	540/1000
Max. balance weight f/r	kW	240/200
Max.PTO power	kN	≥56
Max. traction force		≥29.7
