Product Introduction:
MYL60A wheel asphalt paver equipped with hydraulic lengthened double-layer leveling machine and automatic leveling device, which can achieve good pavement flatness and high density. Wear-resistant parts adopt advanced wear-resistant materials to ensure durability.
Product Features:
● Unique double-layer stepless expansion leveling, convenient to change the width of pavement, leveling base plate using international advanced wear-resistant materials.
● Equipped with 86kw Doitz engine, strong power, low fuel consumption, low noise.
● Centralized lubrication system, for all high temperature bearings filled with grease, to ensure the reliability of the machine.
● Fuel electric cleaning system, easy to operate.
● Electrical system adopts advanced technology, all control components and wiring according to the circuit diagram number, fast troubleshooting.
Product Parameter (Specification):
Description | MYL60A | |
Paving width | mm | 2800-6000 |
Max. paving thickness | mm | 250 |
Theoretical productivity | t/h | 300 |
Paving speed | m/min | 3.07-9.16 |
Running speed | Km/h | 2.30-16.84 |
Drive system | Mechanical /hydraulic | |
Machine weight | t | 12 |
Engine model & power | QSB3.9-C110-30, DF Cummins, 81KW | |
Track shoe width | mm | 300 |
Hopper capacity | t | 12 |
Auto. Leveling unit | Made in China | |
Auger diameter | mm | 350 |
Screed extension mode | Hydraulic extension, mechanical joint | |
Screed vibration frequency | HZ | 0-50 |
Screed heating mode | Far infrared heating, automatic ignition | |
Fuel tank volume | L | 200 |
Hydraulic tank volume | L | 115 |
Centralized Lubrication | Made in China |

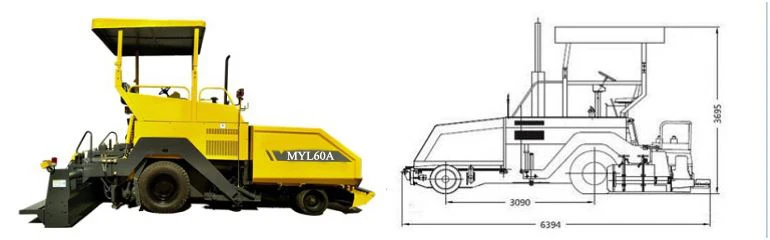

Production Details:
FAQ:
Q: How long is the product warranty period?
A: One year or 1200 hours after leaving the factory, which comes first.
Q: What is the Paving width?
A: 2800-6000 mm
Q: What it the brand of engine?
A: It adopts famous brand CUMMINS series diesel engine.
