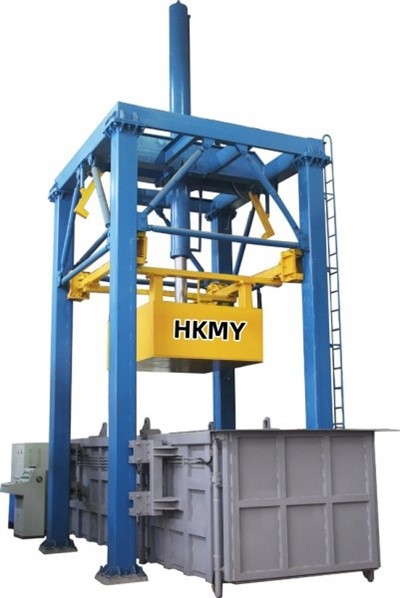

Product parameters:
| Model | Unit | MYLH120TCLZ7-1 |
| Maximum compressive force | T | 120 |
| Overall dimension | mm | 7800×3600×8200 |
| (Length × width × height) | ||
| Compressed form | -- | Single cylinder vertical |
| Hydraulic system pressure | MPa | 21 |
| Motor power | kw | 22 |
| Weight per unit of garbage block | kg | ≥5 |
| Maximum size of garbage block | mm | 2200×1900×1350-1450 |
| Service voltage | V/Hz | 380/50 |
| PLC programmer | -- | Siemens/Mitsubishi |
| Source of water | -- | Domestic water |
Product features:
1. Vertical compression system optimization design, large compression force, high compression ratio, all work by the hydraulic system to complete, a large amount of daily waste treatment.
2. The operating system adopts advanced microcomputer PLG programming control system, with compression, lifting, loading and other automatic operation functions, greatly reducing labor intensity, effectively improving labor efficiency, and improving the working environment of operators.
3. The garbage is compressed and the water in the garbage is removed to achieve the sealing of garbage transportation, avoid the sewage spilling and leaking during transportation, and prevent secondary pollution.
4. Low noise, suitable for the waste compression treatment of various cities, counties, townships, towns, docks, enterprises and other living areas throughout the country.
