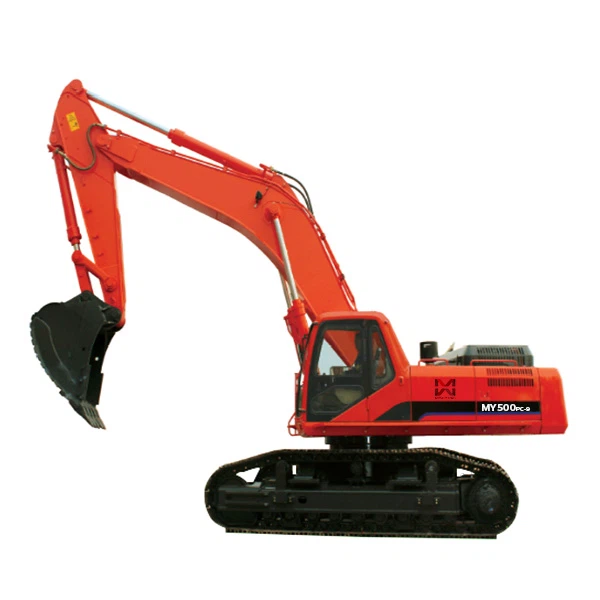

Big excavator Performance parameter
|
Model |
MY500PC-9 |
|
Weight |
48.9t |
|
Rated Bucket Capacity |
2.4m³ |
|
Engine rated power |
280kw/2000rpm |
|
Rotary speed |
10.3min |
|
Walking speed(high/low) |
3.1/5.3km/h |
|
Ground specific pressure |
0.9kpa |
|
Climbing ability(%) |
70 |
|
Digging force |
266KN |
Big excavator Boundary dimension
|
Total width |
3340mm |
|
Transport length |
12230mm |
|
Transport arm height |
3705mm |
|
Cab height |
845mm |
|
The radius of the end of gyration platform |
3800mm |
|
Ground clearance |
770mm |
|
Counter weight ground clearance |
1460mm |
|
Gauge |
3303/2743mm |
|
Total width of the car |
1010mm |
|
Total length of walking mechanism |
5455mm |
|
The total width of belt off |
3900mm |
|
Wheelbase |
4475mm |
|
Belt width |
600mm |
Big excavator Working range
|
Maximums digging depth |
7795mm |
|
Maximums vertical mining depth |
4370mm |
|
Maximums digging height |
10787mm |
|
Maximums unloading height |
7915mm |
|
Maximums digging radius |
11800mm |
|
Minimum turning radius |
5210mm |
FAQ:
Q: Are the main parts made in China or imported?
A: Imported
Q: What is the bucket capacity?
A: 2.4m3
Q: How long is the product warranty period?
A: One year or 1200 hours after leaving the factory, which comes first.
