Product Specifications:
Project | Performance | Remark |
Capacity kg | ≤5000 | |
Operating weight kg | 13000 | |
Max. Lifting height mm | 8800 | From fork to the ground |
Wheel Base mm | 2988 | |
Front Wheel tread mm | 1638 | |
Rear Wheel tread mm | 1845 | |
Min. Ground Clearance mm | 310 | |
Overall Length mm | 5900 | without fork |
Overall Width mm | 2350 | |
Overall Height mm | 2655 | |
Cab Height mm | 2400 | |
Rear Overhand Length mm | 1055 | |
Max. Horizontal Reach mm | 5470 | Horizontal |
Tip angle of big arm (°) | 60°/-12° | |
Min. Turing radius mm | 6800 | |
Max. Gradeability (°) | ≥20% | |
Max. Traveling Speed Km/h | 25 | |
Front Wheel | 11.00-20 | |
Rear Wheel | 9.00-20 |
Production Details:

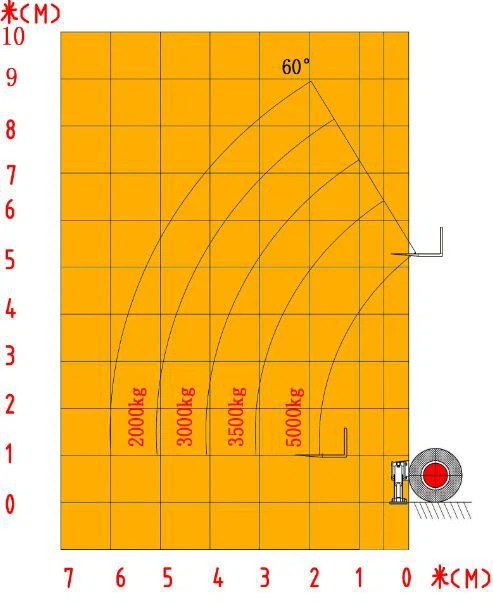

Load Curve:
FAQ:
Q: How long is the product warranty period?
A: Half a year from the goods leaving the factory.
Q: What is the Capacity?
A: 5 Ton
