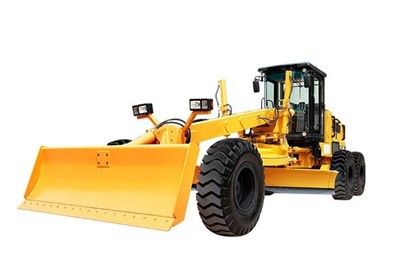

MYPY175 Hydraulic Drive Motor Grader

MYPY175 Hydraulic Drive Motor Grader

The power configuration is Weichai National III turbocharged diesel engine, which is powerful and reliable.
Send Inquiry
Description

 Specific parameters:

Model   MYPY175
Machine weight Kg 15000
Front axle load Kg 4150
Rear axle load Kg 10850
Maximum forward speed Km/h 40.4
Maximum reverse speed Km/h 25.7
Number of gears (forward/reverse)   F6/R3
Minimum turning radius mm 7500
Hydraulic system pressure Mpa 18
Blade length × chord height mm 3660×610
Front axle track mm 2150
Rear axle track mm 2255
Wheelbase mm 5347
Engine Model mm WP6G175
Rated power kW 129
Dimensions mm 8305×2695×3420



Product characteristics:

1.The power configuration is Weichai National III turbocharged diesel engine, which is powerful and reliable; the torque converter produced by German ZEF technology is integrated with the gearbox.

2.The front 6 and rear 3 speed gears meet various working conditions during operation and driving; the drive axle with built-in "NO-SPIN" tooth-type free-wheel anti-slip differential and heavy-duty roller chain drive balance box, box-type swing steering front axle, and side-tilted tires; it adopts the popular foreign swing arm linkage mechanism operating device, and comes standard with a maintenance-free roller plate slewing device.

3.The double cylinders control the shovel angle, which can control the shovel's entry angle according to the hardness of the soil.

4.Two sets of imported HUSCO five-way control valves, convenient and sensitive hydraulic control system, equipped with imported shovel lifting hydraulic balance valve.

5.The central articulated mechanism and deflection steering front wheel can realize the crab-like movement of the whole machine.

6.The accumulator braking system, four-wheel high-efficiency caliper disc service brakes, and internal expansion shoe parking brakes are adopted.

7.All operations are hydraulically controlled, complete with instrument monitoring system and maintenance-free OPTIMA battery. Front bulldozer and rear ripper are optional.
