The Main Features:
* Front wheel hydraulic vibration, hydraulic steering, rear wheel drive, good climbing ability.
* Hydraulic rear wheel drive, stepless variable speed, one lever control, advanced technology, lightweight and comfortable control, safe and reliable.
* Special vibration wheel technology, excitation force, high compaction, high efficiency.
* Articulated frame, light steering, small turning radius, flexible maneuver.
Product Parameter (Specification):

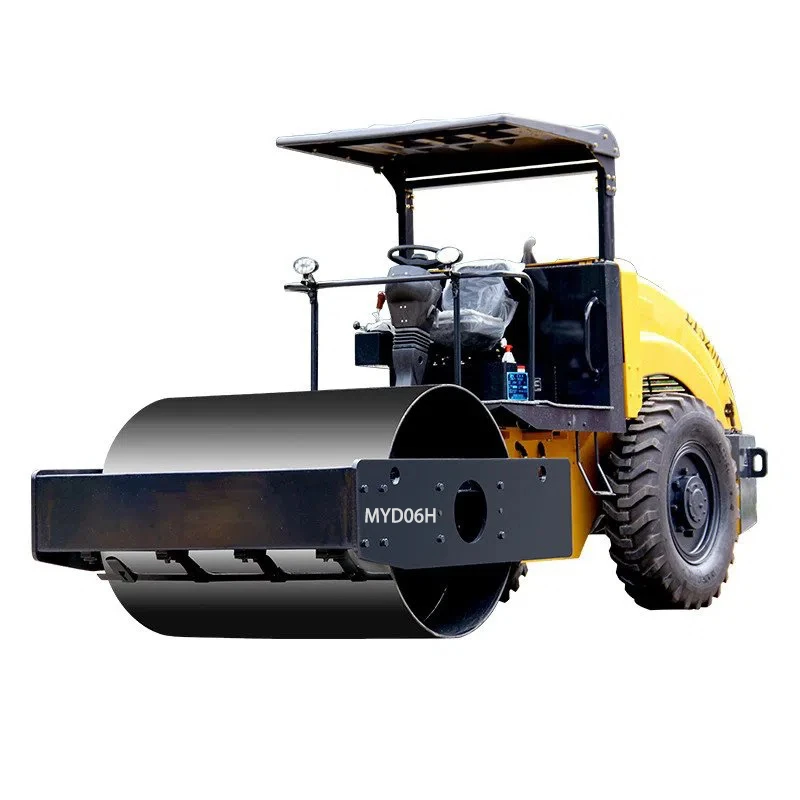

Model | Unit | MYD06H |
Operating weight | kg | 6000 |
Static linear load | N/cm | 185 |
Vibration amplitude | mm | 0.4 |
Vibration frequency | Hz | 45 |
Centrifugal force | Kn | 70 |
Travel speed | Km/h | 0-7.2 |
Grade ability | % | 35 |
Turning radius | mm | 6000 |
Overall dimensions | mm | 4970*1880*2690 |
Vibration drum width | mm | 1660 |
Wheelbase | mm | 2750 |
Ground clearance | mm | 320 |
Diesel rated model | 4D32G31 | |
Diesel rated power | Kw | 36.8 |
Diesel rated speed | r/min | 2200 |
Fuel tank capacity | L | 190 |
Hydraulic oil tank capacity | L | 96 |
Production Details:
FAQ:
Q: How long is the product warranty period?
A: One year or 1200 hours after leaving the factory, which comes first.
Q: What is the power of the engine?
A: 36.8kw
