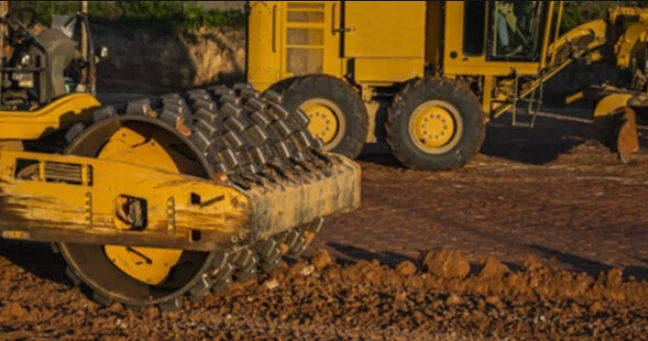

Padfoot drum roller main Parameters:
| Model | Unit | MY308H |
| Working Mass | Kg | 7800 |
| Static Line load | N/cm | 225 |
| Amplitude of vibration | mm | 0.72 |
| Frequency of vibration | HZ | 45 |
| Excitation force | KN | 120 |
| Travel speed (Forward /Reverse) | Km/h | 0-9.5 |
| Climbing ability | ％ | 30 |
| Minimum turning radius | mm | 5510 |
| Dimension (L×W×H) | mm | 4795×1865×2645 |
| Vibrating wheel width | mm | 1700 |
| Vibrating wheel diameter | mm | 1200 |
| Wheelbase | mm | 2540 |
| Diesel engine brand | Changfa | |
| Engine model | CF4B-ZL | |
| Engine power | kw | 58.8 |
| Engine Emission Standards | Non-road National IV |
Padfoot drum roller main features:
•Hydraulic travel, hydraulic vibration, hydraulic steering, stepless speed change, one lever operation
•With Changfa power national IV engine, environmental protection, high efficiency, energy saving, reliable, low noise, large power reserve.
•Travel system with closed piston pump and piston motor.
•Vibration system using Tianjin hydraulic vibration pump, motor, Beijing Huade solenoid valve, with strong excitation force and reliability.
•Adopt reinforced roller special wheelside reduction drive axle, with high load strength and good reliability.
•Adopting high-grade LCD instrument assembly, all kinds of information of the vehicle can be grasped at a glance and at any time.
•Front and rear LED headlights, humanized lighting design, even if the night work as handy
•Standard with luxury driving seat, comprehensive human-machine integration, humanized design, roller convenience, comfort greatly improved, to bring operators a pleasant working experience.
•The overall structure is compact, small turning radius, strong climbing ability, mobile and flexible, safe and reliable.
