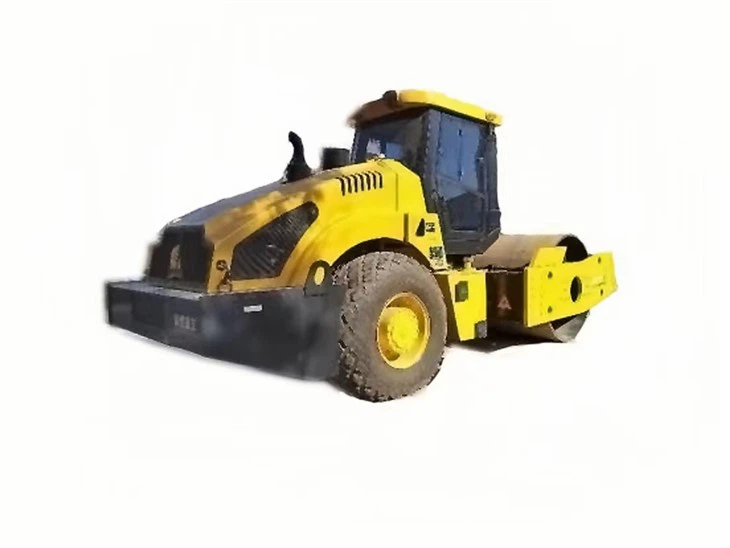

Vibratory Drum Roller

Vibratory drum roller is manufactured according to the international advanced technology and by use of imported components from abroad.
The machine is super heavy-duty vibratory roller, possesses a great working mass and strong centrifugal force.
It is the best compaction equipment of high quality and high effect in the large-scale mechanized construction.
This machine is suitable for non-cohesive materials, such as graves, macadam, macadam-aggregate mixtures and sandy soil etc.
Also it can effect good compaction in cohesive material, there-fore the machine an ideal equipment for expressway. Mining road, embankment, sea port and industrial sites.

Send Inquiry

Description

Vibratory drum roller Main Technical Parameters

Model	Unit	MY726H
Operating mass	kg	26000
Static linear load	N/cm	695
Vibration amplitude	mm	1.9/0.95
Vibration frequency	Hz	28/35
Centrifugal force	kN	460/360
Travel speed	Km/h	11
Grade ability	%	35
Turning radius	mm	7500
Overall dimension	mm	70252358 3250
Vibration round width	mm	2130
Wheelbase	mm	3500
Diesel model		WP6G210
Diesel power	kw	154

product-526-388

Vibratory drum roller Main features

The power configuration is Weichai national diesel engine, have huge power reserving co efficiency, which comply with the operating conditions above 4000 meters altitudes.

Total hydraulic pressure full drive (LTD), frequency and radiation conversion, articulated direction change, two step less speed changes, advanced technology; block the oil supply to brake the vehicle, safe and reliable.

Streamline outline, circular windshield glass and curvy hood form a unique style.

Hydraulic pump and motor choose international famous brand products, superior quality.

Equipped with pad foot or removable pad foot as option.

Equipped with intelligent compaction management system option.
