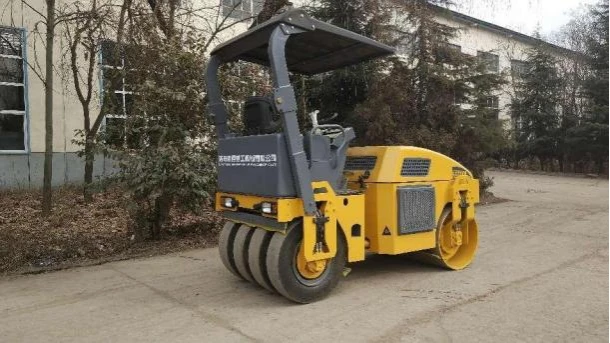

Small road roller Main Features
1.Hydraulic double wheels drive, hydraulic front drum vibration and steering, with reliable performance and optimum function ratio.
2.LTC203P hydraulic front and rear wheels drive, hydraulic front drum vibratory.
3.Both front and rear wheels have scraping and water spray unit, advanced sprinkler pump system can achieve intermittent,greatly expanded mechanical proper working condition.
4.Adopt ZN390B diesel engine, Energy conservation and environmental, very convenient for use and maintenance.
5.Compact integral structure, small volume, capable of used for compaction on narrow site, with small investment, quick return of good economic.
6.LTC203P rear wheel adopts combination of four slick tires, and has double function, of wheel roller and tire roller, which can effectively improve the rolling quality of asphalt pavement, and improve the climbing ability.
7.LTC203P walking more stable, damping effect.
8.LTC203P High-end seats, has greatly enhanced operator comfort, reduce fatigue.
Small road roller Main Technical Parameters:
|
Model |
|
LTC203P |
|
Operating mass |
kg |
3000 |
|
Static linear load |
N/cm |
136/ 180 |
|
Vibratory frequency |
mm |
0.5 |
|
Centrifugal force |
KN |
30 |
|
Vibration frequency |
Hz |
50 |
|
Travel speed |
Km/h |
0- 12 |
|
Grade ability |
% |
32 |
|
Steering angle |
。 |
+26 |
|
Overall dimension |
mm |
2760*1400*2580 |
|
Drum diameter |
mm |
700 |
|
Drum width |
mm |
1250 |
|
Quantity of rear tire |
Pic |
4 |
|
Specification of rear tire |
|
7.5- 15 |
|
Wheelbase |
mm |
2010 |
|
Diesel power |
Kw |
26.5 |
|
Diesel model |
|
ZN390B |
|
Water tank capacity |
L |
200 |
Operation and Maintenance:
1. Frequently check and adjust the axial clearance of the rolling wheel. When the roller has been working for half a year, the installation positions of the rollers should be changed to make the tire wear more uniform.
2. When the roller is transported by itself, the tire pressure should be kept below 0.6 to 0.65Mpa, and the driving distance should not be too far.
3. The brake mechanism should be checked and maintained frequently.
4. If the roller is parked for a long time, the body should be erected to reduce the deformation of the tire under pressure. After being parked for a long time, check whether the lubricating oil in each part is deteriorated when using it again. If it cannot be used, drain the waste oil and replace with new oil.
FAQ:
Q: How long is the product warranty period?
A: One year or 1200 hours after leaving the factory, which comes first.
Q: What is the delivery time?
A: The delivery time is about 10-30 days.
