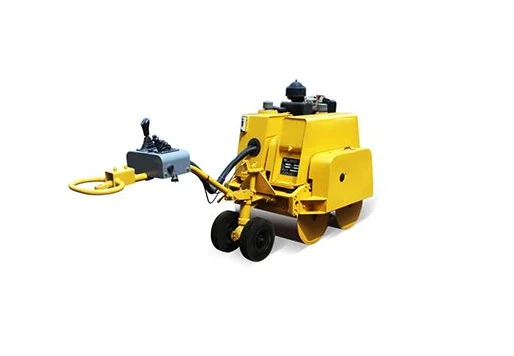

1 ton asphalt roller Main Features:
▲The machine has beautiful appearance, compact structure and small volume. Rolling operation can be carried out on narrow ground;
▲All-wheel drive, good climbing ability;
▲CF186F vertical direct jet cooling engine, with electric and manual starting device;
▲Designed with guide wheel and joystick, labor-saving and easy to operate;
▲Hydraulic stroke, adopt imported pump ＆ starting motor, CVT.
1 ton asphalt roller Main Technical Parameters:
|
Model |
MY08H |
|
|
Operating mass |
kg |
770 |
|
Static linear load |
N/cm |
62/62 |
|
Vibration amplitude |
mm |
0.25 |
|
Vibration frequency |
Hz |
48 |
|
Centrifugal force |
KN |
12 |
|
Travel speed |
Km/h |
0-4 |
|
Grade ability |
% |
40 |
|
Turning radius |
mm |
2700 |
|
Turning angle |
° |
+30 |
|
Vibration drum diameter |
mm |
400 |
|
Drum width |
mm |
600 |
|
Wheelbase |
mm |
470 |
|
Overall dimension (L*W*H) |
mm |
2400*880*1100 |
|
Diesel model |
CF186F |
|
|
Diesel power |
KW |
5.68 |
|
Water tank capacity |
L |
32 |
Production Details:
FAQ:
Q: How long is the product warranty period?
A: One year or 1200 hours after leaving the factory, which comes first.
Q: What is the delivery time?
A: We have it in stock.
