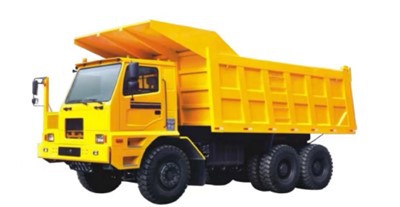

GKM50C Off-highway Dump Truck

GKM50C Off-highway Dump Truck

GKM50C series off-highway dump truck adopts professional customized high-horsepower engineering version low-speed high-torque engine, reliable durability, higher liter power and torque reserve; Equipped with composite multistage desert air filter, large diameter and wide base engineering tires, to meet the requirements of harsh industrial and mining use. Through the configuration of Fast engineering type gearbox, high speed ratio double deceleration mine bridge, carefully matched power transmission system, bearing and climbing ability is strong, heavy load start smoothly. The longitudinal beam of the frame is comprehensively strengthened, and the technology of 10+10mm high quality manganese steel is fully threaded; And the whole machine adopts the top Schmust labor lock nut, safe and reliable driving.
Send Inquiry
Description

Product Feature:

1 The use of professional customized high-horsepower engineering version of low-speed high-torque engine, reliable durability, liter power and torque reserve is higher; Equipped with composite multistage desert air filter, large diameter and wide base engineering tires, to meet the requirements of harsh industrial and mining use.
2 Through the configuration of Fast engineering type gearbox, high speed ratio double-stage deceleration mine bridge, carefully matched power transmission system, bearing and climbing ability is strong, heavy load start smoothly.
3 frame longitudinal beam beam is comprehensively strengthened, using 10+10mm high quality manganese steel screw joint technology; And the whole machine adopts the top Schmust labor lock nut, safe and reliable driving.
4 Configuration of European technology hydraulic front support system, high reliability; With reliable sealing quick plug gas system and high quality electrical connector, effective waterproof and dust-proof, good operation effect.
5 Adopt mature and stable dual-pipe brake system, equipped with service brake and parking brake combined with a composite brake chamber, the braking force independent action on the front, middle and rear wheels, with service brake, parking brake, emergency brake three functions, excellent braking performance.



Product Parameter:

Model GKM50C
Kerb mass (kg) 22000
Load mass (kg) 40000
Overall size (mm) 8500x3165x3700
Cargo volume ( m³) 24
Drive model 6x4
Engine D10.34
Max. Power 249kW
Max. Torque 1490Nm/1200~1500rpm
Transmission FAST 9JSD180
Tyre size 14.00-24/13.00-25
Max.speed 48km/h
Front axle load(t) 13
Drive axle load(t)/Ratio Two-grade reducing2x26/11.125
Clutch 430mm Diaphragm
Min. turning radius 10m
Ground clearance 390mm
Grade ability 40%
Electric system 24V
Brake form Energy storage air break braking
Damping model Steel spring-assisted oil shock absorber
