Specific parameter:
| Model | MY966 |
| Bucket capacity | 3.5 |
| Rated load(kg) | 6000 |
| Max. travel speed(km/h) | 38 |
| Max. Grade ability(°) | 28 |
| Max. Dumping height(mm) | 3100 |
| Max. Dumping reach(mm) | 1216 |
| Lifting Time(≤S) | 6.8 |
| Total Time(s) | 11.8 |
| Max. Breakout force(KN) | 195 |
| Overall weight(kg) | 20000 |
| Max. tractive force(KN) | 180 |
| Min Turning Radius(mm) | 6593 |
| Steering Angle(°) | 35 |
| Min Ground Clearance(mm) | 544 |
| Engine Model | Shangchai SC11CB240.1G2B1 |
| Engine Power(KW/rpm) | 178/2200 |
| Wheel base(mm) | 3200 |
| Wheel tread(mm) | 2264 |
| Tyre | 26.5-25 |
Product feature:
1. Shangchai SC11CB240.1G2B1 engine produced by Carter technology, with large reserve torque and strong power;
2. Liuzhou 4W200 hydraulic transmission with ZF technology, fixed shaft structure, high reliability;
3. Electro-hydraulic shift, front 4 and back 3 gears, light and flexible operation, jump switch, can improve work efficiency;
4. Single handle pilot working control system, comfortable operation, light and flexible;
5. Enhanced drive axle, large bearing capacity, high reliability;
6. Dual pump confluence working hydraulic system, energy saving effect is remarkable;
7. Coaxial flow amplification full hydraulic steering system, flexible operation, good stability;
8. Forced cooling of walking and working hydraulic system to improve work efficiency;
9. Gas cap oil assisted braking system, 8 caliper disc brakes;
10. Large span, middle articulated frame, higher reliability;
11. A working device with high automatic levelling performance;
12. The hinged part of the working device adopts dust-proof sealing lubrication structure;
13. Integrated luxury instrument platform;

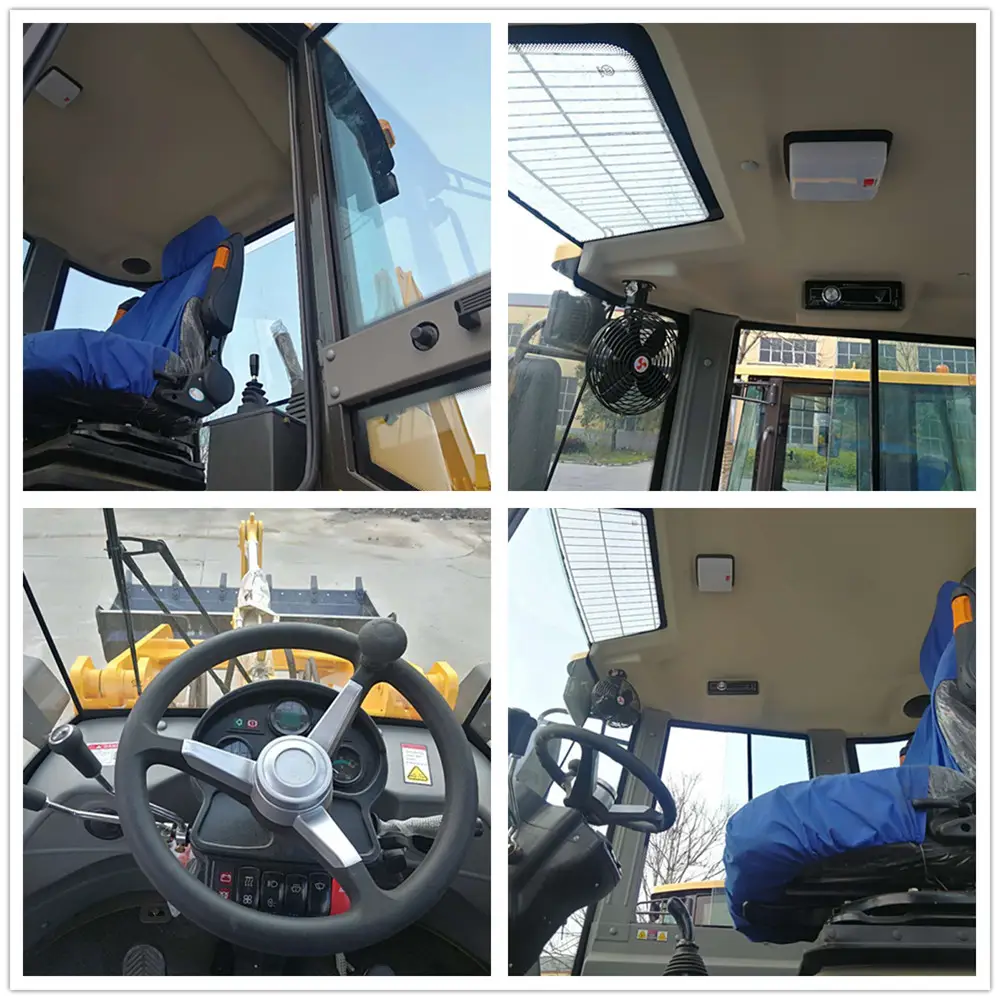

14. New luxury cab.
