Raw Material of Metal Crusher

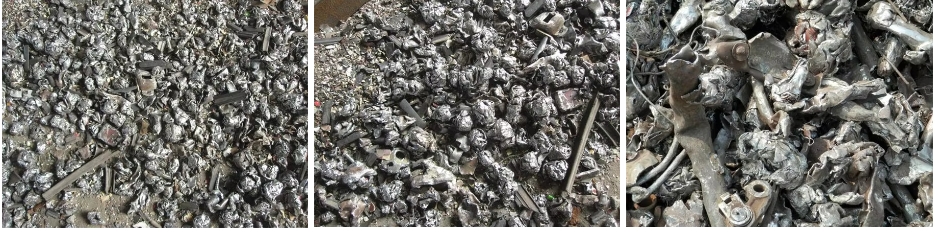

Final Product

Work Principle
Driven by a high-speed and high-torque motor, the hammer on the rotor of the crusher, in turn, hits the metal compact in the crushing chamber. Under strong impact, the metal compact is torn, hammered, and lumped. After the scrap steel is processed by the sorting equipment, high-quality scrap steel crushing materials with higher purity can be obtained.
Technical Parameters
|
Model
|
Motor Power(kw)
|
Capacity(m)
|
Area(m³)
|
Dimension(mm)
|
|
400
|
18.5-22
|
260-300
|
5
|
2200x1400x1850
|
|
600
|
22-30
|
500-700
|
7
|
2400x1600x2300
|
|
800
|
37-45
|
950-1100
|
9
|
2600x1800x2600
|
|
1000
|
55-75
|
1500-2000
|
13
|
2800x1900x3000
|
|
1300
|
75-90
|
2000-3000
|
20
|
3300x2000x3500
|
|
1600
|
110-132
|
4000-6000
|
30
|
3800x2300x4000
|
|
2000
|
220
|
8000-12000
|
50
|
4000x3200x4200
|
Features
1. Metal crusher with a large feed opening and deep crushing chamber, it can deal with materials with high hardness and big size but produces less powder.
2. Products in various sizes can be obtained by adjusting the distance between the plate and the rotor.
3. Compact structure, newly designed impact plate welded on the rotor with high inertial force.
4. By adjusting the distance between plates, products in various sizes and fine shape can be obtained.
